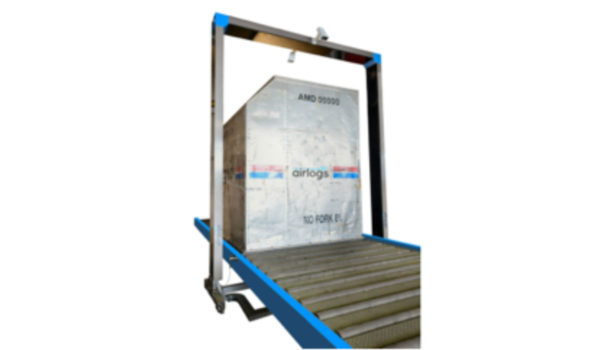

Logiscan Cargo CONTOUR

The Logiscan-Cargo range provides to operators of the airports for the control of the weight and dimensions of the goods / pallet that have to be shipped.

Logiscan-Cargo CONTOUR uses a series of two-dimensional laser scanners synchronized with each other to obtain a point cloud with an accuracy of 2 centimeters.

The software, through a real-time processing, is able to highlight any excess of weight and size from the parameters set.

Logiscan-Cargo CONTOUR can be supplied both in the complete version (measuring bridge + roller conveyor) and in the OEM version (measuring bridge only), capable of being installed on any existing roller conveyor.

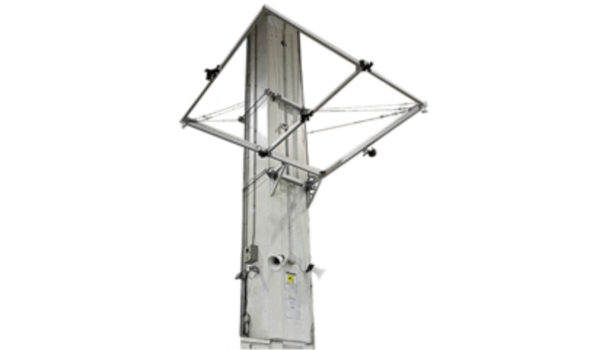

Logiscan Cargo VOLUME

Logiscan Cargo VOLUME uses TOF (Time Of Flight) cameras, synchronized with each other, to obtain a point cloud with the three-dimensional scanning of the goods / pallet.

The software, through a procedure in real time, calculates the “bounding box” with an accuracy of 2 cm.

Logiscan Cargo VOLUME has an aluminum structure to be placed at a height varying between 3 and 6 meters, depending on the maximum volume that must be measured

the structure has been developed to minimize any type of vibration and can be adjusted for a precision calibration of both the positioning of the portal and the alignment of the measurement sensors.

The quality of the structure guarantees minimum periodic maintenance.
